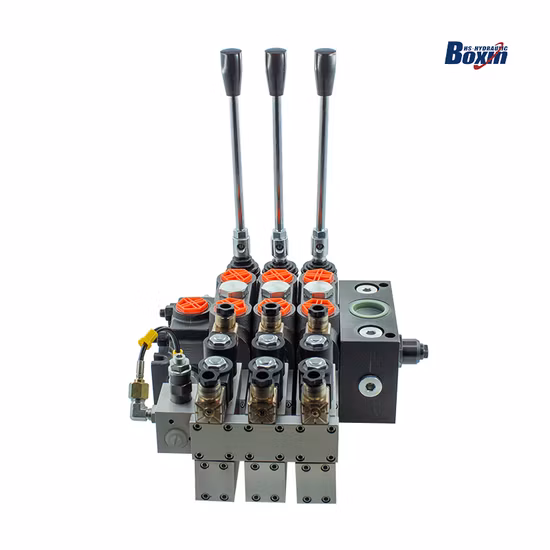

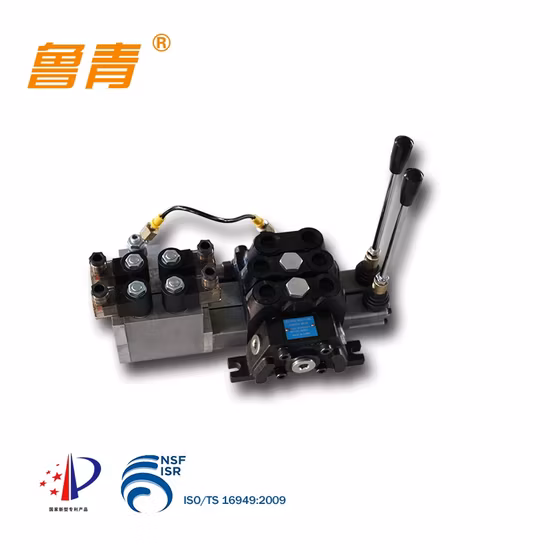

12/24V Directional Hydraulic Spool Solenoid Electric-Hydraulic Remote Control Valve

Basic Info

Model NO.	DCV100-2Y
Temperature	High Temperature
Certification	RoHS, Iatf16949
Media	Oil
Standard	Standard
Connection Mode	Internal Thread
Power	Hydraulic
Material	Cast Iron
Type	Self-Operated
Warranty	12 Months
Working Temp	-20~80 Degree
Transport Package	Plastic Bag- Carton Box- Pallet- Wooden Box
Specification	as in drawings
Trademark	BXHS
Origin	China
HS Code	8481802990
Production Capacity	20000/Month

Product Description

12/24V directional hydraulic spool solenoid electric-hydraulic remote control valveDCV directional control valve have the features of high pressure, compact structure, stable performance and high universality.☆ Cartridge valve: relief valve, over load valve, anti-cavitation valves, etc.☆ Spool function: A, O, Y, M, Q, etc.☆ Control type: Manual, cable, pneumatic, hydraulic, electirc-pneumatic, electric-hydraulic, etc.☆ Carry-over port as hydraulic source for other parts☆ Structure: monoblock & sectional

Rated flow (L/min)	Max flow (L/min)	Max pressure (Mpa)	Pilot control pressure (Bar)	Pneumatic control pressure (Bar)	Spool strike (mm)
100	120	35	10-13	5-10	±7
